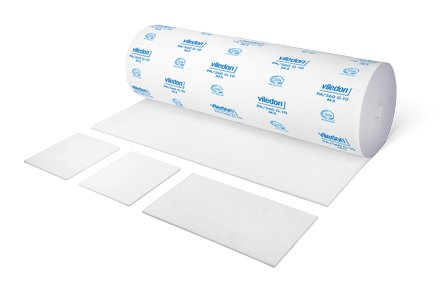

filter mats PA duo

In surface treatment applications, the

??PA / 500-10
??PA / 560 G-10
filter mats are acknowledged as standard equipment. The main field of application for these fine filters is final intake air filtration in paint spray systems and booths.

The mats are made of high performance nonwovens produced inhouse from elastic, break-resistant polyester fibers. These nonwovens are thermally bonded and specially smoothed on the clean air side, in order to assure excellent fiber bonding. In addition, the fibers are specially processed to provide an actively adhesive surface.
The filter media are progressive in structure. This optimizes the defined filter performance and the dust holding capacity, resulting in longer useful lifetime for the filter concerned.
??The actively adhesive surface of each individual fiber of the filter media ensures permanent retention of particles already collected throughout the entire operating lifetime.
??PA filter mats qualify for the highest “S0” class in the Viledon migration test acknowledged throughout the market.
??PA / 560 G-10 additionally features a reinforcing scrim on the clean air side. This enhances the filter mat’s stability and reduces the risk of damage to the clean air side during installation.
